Technology

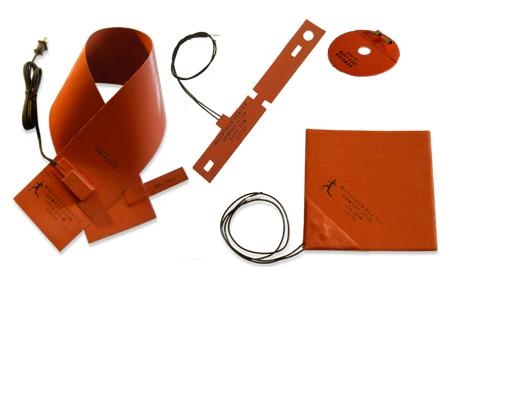

Indheat Heater flexible heaters provide outstanding performance in applications up to 220°C. Design versatility permits special heat profiles,complex shapes and installation on a variety of surfaces. They are not affected by vibration, flexing, or repeated mechanical shock. Silicone rubber has a high dielectric strength, is non-toxic, and flame retardant.
_resized.jpg)
| Standard Specifications: | |
|---|---|
| Voltage | 12V to 480V, AC or DC |
| Length | Depends on motortype |
| Width | Depends on motortype |
| Thickness | 3mm |
| Lead Wire | Silicone |
| Operating Temperature | -50°C / +220°C |
| Wattage Tolerance | +5%, -10% |

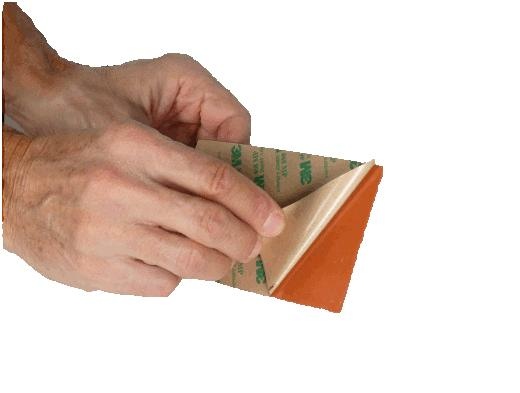

Pressure Sensitive Adhesive, also called PSA, is the simplest mounting method. Just peel the protective paper from the back of the heater and stick it to your surface. PSA is rated to a continuous temperature of 150°C and intermittent usage up to 200°C. PSA is only recommended for flat surfaces.
